Item NO. | Aperture (mm) | Wire Dia(mm) |
1 | 3 | 15 |
2 | 4 | 2 |
3 | 4.76 | 1.8 |
4 | 6 | 2 |
5 | 6.3 | 2 |
6 | 8 | 2.5 |
7 | 11.1 | 3.5 |
8 | 17 | 5 |

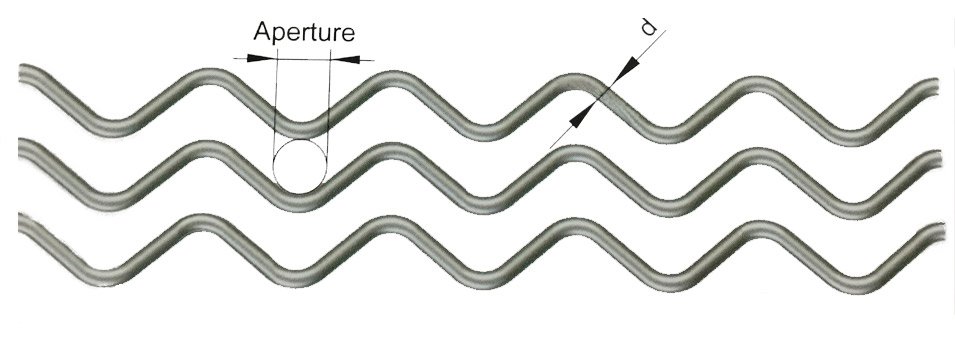

Type W( Wave Opening): This is made with crimped wires placed parallel to each other, this allows a very large screening area, reduces blinding of wet and sticky materials, but gives lower precision. It is used in small aperture sizes and in end tension decks.
Certain materials are blinding or pegging due to their humidity, plasticity or shape. This considerably reduces the production capacity of the screen and increases the downtime of the machine.
To solve this problem, we have self-cleaning screens with crimped wire or polyurethane bands, which vibrate independently from one another, being excited by the vibration of the machine and also by the weight of the material to be screened. This allows a noticeable increase in production and a longer life of the meshes.
These meshes also offer a higher 30% percentage of screening surface, which makes them highly recommendable for improving production capacity.
Item NO. | Aperture (mm) | Wire Dia(mm) |
1 | 3 | 15 |
2 | 4 | 2 |
3 | 4.76 | 1.8 |
4 | 6 | 2 |
5 | 6.3 | 2 |
6 | 8 | 2.5 |
7 | 11.1 | 3.5 |
8 | 17 | 5 |
