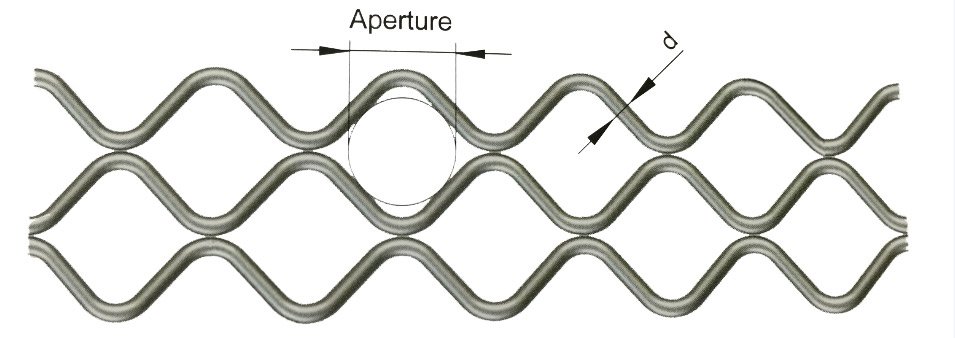

Type S(Diamond Opening): This is our most popular self-cleaning screen, having a very good combination of screening capacity and precision. Its individual wires vibrate independently from one another, avoiding material build-up, pegging and blinding.
Certain materials are blinding or pegging due to their humidity, plasticity or shape. This considerably reduces the production capacity of the screen and increases the downtime of the machine.
To solve this problem, we have self-cleaning screens with crimped wire or polyurethane bands, which vibrate independently from one another, being excited by the vibration of the machine and also by the weight of the material to be screened. This allows a noticeable increase in production and a longer life of the meshes.
Item NO. | Aperture (mm) | Wire Dia(mm) |
1 | 2 | 1.6 |
2 | 2.5 | 1.2 |
3 | 5 | 2.5 |
4 | 5 | 3 |
5 | 6 | 2 |
6 | 6 | 2.5 |
7 | 6.3 | 2.5 |
8 | 6.3 | 3 |
9 | 7 | 2.5 |
10 | 7 | 3 |
11 | 8 | 2.5 |
12 | 8 | 3.15 |
13 | 9 | 2 |
14 | 9 | 3 |
15 | 10 | 2.5 |
16 | 10 | 4 |
17 | 10 | 5 |
18 | 11.2 | 2.5 |
19 | 11.2 | 4 |
20 | 12 | 4 |
22 | 12 | 5 |
23 | 12.5 | 4 |
24 | 12.5 | 5 |
25 | 14 | 3.5 |
26 | 14 | 4 |
27 | 17 | 3 |
28 | 18 | 4 |
29 | 18 | 5 |
30 | 19 | 3.15 |
31 | 19 | 4 |
32 | 22.24 | 6.3 |
33 | 22.24 | 8 |
34 | 25 | 4 |
35 | 25 | 6.3 |
36 | 25.4 | 5.72 |
37 | 28 | 4 |
38 | 28 | 5 |
39 | 28 | 6.3 |
40 | 31.75 | 6.3 |
41 | 38 | 6.3 |
42 | 40 | 1 |
43 | 45 | 8 |
44 | 45 | 10 |
45 | 50 | 10 |
46 | 55 | 10 |
